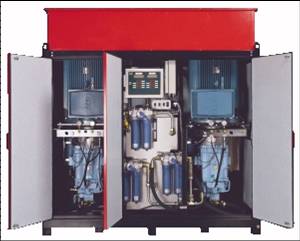

Hagglunds PEC Power Unit

The intention with the Power Unit is to provide the hydraulic motor(s) (or other hydraulic systems) with the required fl ow of oil and pressure at the right time.
All included parts are assembled in one (or more) compact cabinet(s). The Power Unit has one or more pumps driven by one or more electric motors.
The main pump is an axial piston pump with variable displacement for closed loop systems.
The electric motor is totally enclosed. Three different control systems are available.The Power Unit is a very fl exible product with a wide option range. This makes it possible to select a standard Power Unit to fulfi ll the features needed in many different applications.

Main Components in PEC

Electric Motor

The electric motors that we use have high effi ciency and are also extremely reliable. They are started with no load and run optimally at fi xed speed. We supply ABB and SIMENS electric motor in our PEC with many certifications. Such as Bureau Veritas(BV), Det norske Veritas (DnV), Lliyd's Register of Shipping (ABS)...etc.

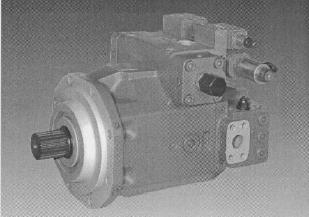

Hydraulic Pump

The hydraulic pumps are of the variable displacement axial piston type with very fast acting pressure compensator override. This virtually eliminates overloads and is a major factor in system reliability. You can choose different displacement pump according to your need.

Pump Selection Chart
Denison	Sauer	Hagglunds
P6 = 98 cc	42 cc	SP40: 40 cc
P7 = 119 cc	55 cc	SP71: 71 cc
P11 = 180 cc	75 cc	SP125: 125 cc
P14 = 229 cc	100 cc	SP180: 180 cc
P24 = 403 cc	130 cc	SP250: 250 cc
P30 = 501 cc	180 cc	SP355: 355 cc
		SP500: 500 cc
		SP750: 750 cc
